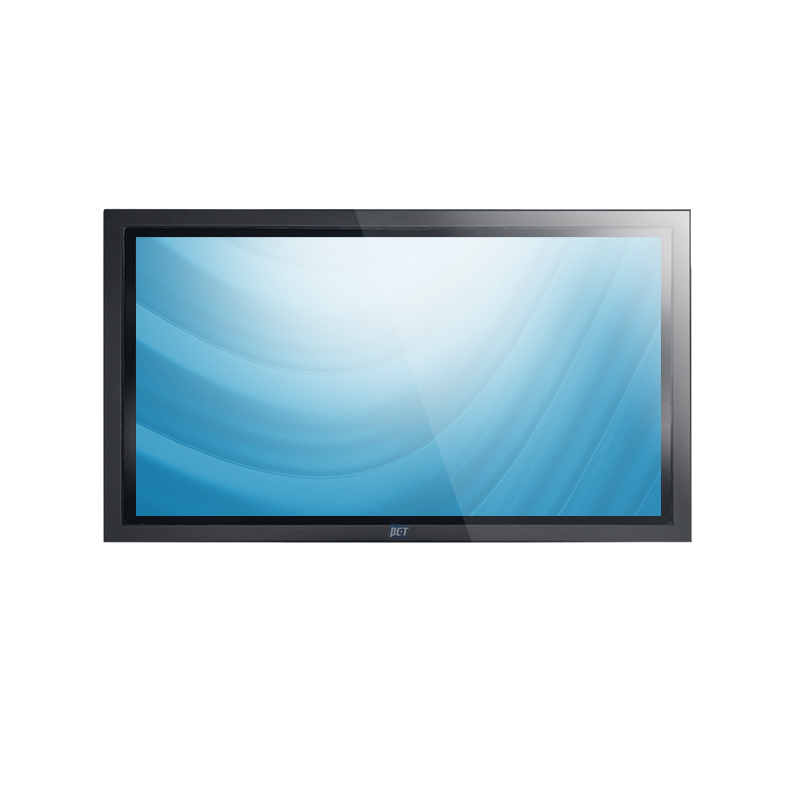

43" LED Framed 4K Flat PCAP Touchscreen monitor for Gaming Casino Slot machine

PCT01-43T-Edge (43" Flat Touch 4K)

General Description: PCT01-43T-Edge is one of 43” 4K Flat LCD touch monitor that using the projected capacitive touch technology, with designed RGB LED framed for full monitor, illumination surrounding the display, widely used for casino or gaming application. Main Features: •Totally unique industrial design •VGA, Display port, HD-MI interface •Large format, deep curved sizes •UHD 3840x2160, WVA 178˚x 178˚ for landscape or portrait usage •Enhanced solution for casino slot machines, gaming, signage, kiosks and other public information terminals •10-touch PCAP behind 4mm tempered glass
Online service
Overview


PCT01-43T-Edge is one of 43” 4K Flat LCD touch monitor that using the projected capacitive touch technology, with designed RGB LED framed for full monitor, illumination surrounding the display, widely used for casino or gaming application.





Speification


    Product                                 43” Flat LED framed 4K LCD Touch monitor (Front + Edge LED)

LCD Specification

   Display Ratio

      16:9

   Backlight

      LED

   MTBF

      50000Hrs

   Active Area

      941.184mm (H)*529.416mm(V)

   Viewing Angle

      89°/89° (Left / Right), 89°/89° (Vertical / Horizontal)

   Support Color

      10 bits (1.07B)

   Response Time

      Typ. 8ms

   White Luminance

      Typ.500cd/m2 (after PCAP Min. 450cd/m2)

   Contrast Ratio

      Typ.3000:1

   Electrical Interface

      V-by-One 8 lane

   Display Resolution

      3840*2160 [UHD]








Touch Panel

   Type

      43” Projected Capacitive Multi-Point Touch Panel

   Touch controller

      EETI EXC80H100 USB Touchscreen controller (TX50*RX90)

   Active Area

      943.20mm x 531.40mm

   Total Thickness

      4.0mm anti-vandal cover-glass + 0.2mm OCA + 0.7mm sensor = 4.9mm

   Hardness

      7H

   Glass Safety

      Compliance with P1A, EN 356 : 1999 Classifications

   Consumption

      0.3W

   Interface Type

      USB interface, Type B

   Touch Points

      10 points

   Response Time

      10ms

   Linearity

      2%

   Minimum Touch Diameter

      1.5mm

   Touch Strength

      10g

   Touch Panel Life Time

      200 million touches

   Touch Operation

      Finger or touch pen

   Compatible O/S

      WinXP, Win7, Win8, Windows 10, Android, Linux


LCD Monitor

Specification

   Outline Dimension

      1033.20mm * 621.40mm * 90.50mm

   Transmittance

      90%±1%, Reflection:6%

   Product Color

      Black

   Environment Parameter

      Operation: 0~+50°C Storage : -20~+70°C

      Operating Humidity : 20%~90%

   Interface

      VGA, DVI, HD-MI, DP, USB for touch (USB-B)

   IK / IP Protection Level

      IK08 / IP65 (front)

   Heat Radiation

      Natural Air Cooling

   Input Voltage

      100~240V  AC (50~60Hz)

   Warranty

      12 months

   Certification

      CCC, CE , FCC , RoHS
